CDRH104R
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(mΩ) | Rated current
額定電流(A) | | CDRH104R-1R5M | 100KHz,0.3V | 1.5 | ±20 | 8.1 | 6.50 | | CDRH104R-2R5M | 100KHz,0.3V | 2.5 | ±20 | 10.5 | 6.10 | | CDRH104R-3R8M | 100KHz,0.3V | 3.8 | ±20 | 13.0 | 5.50 | | CDRH104R-5R2M | 100KHz,0.3V | 5.2 | ±20 | 22.0 | 5.40 | | CDRH104R-7R0M | 100KHz,0.3V | 7.0 | ±20 | 27.0 | 4.50 | | CDRH104R-100M | 1KHz,0.3V | 10.0 | ±20 | 35.0 | 3.80 | | CDRH104R-150M | 1KHz,0.3V | 15.0 | ±20 | 50.0 | 3.10 | | CDRH104R-220M | 1KHz,0.3V | 22.0 | ±20 | 73.0 | 2.50 | | CDRH104R-330M | 1KHz,0.3V | 33.0 | ±20 | 93.0 | 2.20 | | CDRH104R-470M | 1KHz,0.3V | 47.0 | ±20 | 128.0 | 1.90 | | CDRH104R-680M | 1KHz,0.3V | 68.0 | ±20 | 213.0 | 1.42 | | CDRH104R-101M | 1KHz,0.3V | 100.0 | ±20 | 304.0 | 1.25 | | CDRH104R-151M | 1KHz,0.3V | 150.0 | ±20 | 506.0 | 0.85 | | CDRH104R-221M | 1KHz,0.3V | 220.0 | ±20 | 756.0 | 0.70 | | CDRH104R-331M | 1KHz,0.3V | 330.0 | ±20 | 1090.0 | 0.52 |
特長：
FEATURES:
數量/卷：1,000PCS。

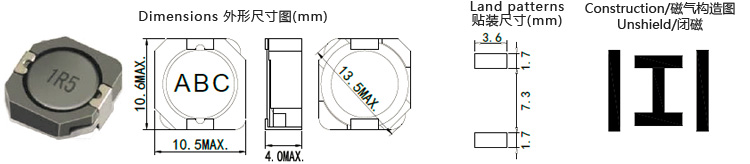

Quantity/reel: 1,000PCS. 耐大電流，低直流電阻，方形10.5mm×10.6mm，高度4.0mm MAX。
High rated current & Low DCR, quadrate 10.5mm×10.6mm. Height 4.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于數碼相機、掃描儀、升降壓轉換、磁帶錄像機電源、液晶顯示組件、便攜式終端設備、筆記本電腦等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
