CDRH105R
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(mΩ) | Rated current
額定電流(A) | | CDRH105R-0R8M | 100KHz,0.3V | 0.8 | ±20 | 4.3 | 9.50 | | CDRH105R-1R5M | 100KHz,0.3V | 1.5 | ±20 | 5.8 | 8.30 | | CDRH105R-2R2M | 100KHz,0.3V | 2.2 | ±20 | 7.2 | 7.50 | | CDRH105R-3R3M | 100KHz,0.3V | 3.3 | ±20 | 10.4 | 6.50 | | CDRH105R-4R7M | 100KHz,0.3V | 4.7 | ±20 | 12.3 | 6.10 | | CDRH105R-6R8M | 100KHz,0.3V | 6.8 | ±20 | 18.0 | 5.40 | | CDRH105R-8R2M | 100KHz,0.3V | 8.2 | ±20 | 20.0 | 4.85 | | CDRH105R-100M | 1KHz,0.3V | 10.0 | ±20 | 26.0 | 4.45 | | CDRH105R-120M | 1KHz,0.3V | 12.0 | ±20 | 33.0 | 3.80 | | CDRH105R-150M | 1KHz,0.3V | 15.0 | ±20 | 41.0 | 3.40 | | CDRH105R-180M | 1KHz,0.3V | 18.0 | ±20 | 46.0 | 3.10 | | CDRH105R-220M | 1KHz,0.3V | 22.0 | ±20 | 61.0 | 2.90 | | CDRH105R-270M | 1KHz,0.3V | 27.0 | ±20 | 69.0 | 2.60 | | CDRH105R-330M | 1KHz,0.3V | 33.0 | ±20 | 84.0 | 2.40 | | CDRH105R-390M | 1KHz,0.3V | 39.0 | ±20 | 106.0 | 2.25 | | CDRH105R-470M | 1KHz,0.3V | 47.0 | ±20 | 130.0 | 2.00 | | CDRH105R-560M | 1KHz,0.3V | 56.0 | ±20 | 149.0 | 1.90 | | CDRH105R-680M | 1KHz,0.3V | 68.0 | ±20 | 201.0 | 1.60 | | CDRH105R-820M | 1KHz,0.3V | 82.0 | ±20 | 227.0 | 1.45 | | CDRH105R-101M | 1KHz,0.3V | 100.0 | ±20 | 253.0 | 1.35 | | CDRH105R-121M | 1KHz,0.3V | 120.0 | ±20 | 303.0 | 1.18 | | CDRH105R-151M | 1KHz,0.3V | 150.0 | ±20 | 370.0 | 1.10 | | CDRH105R-181M | 1KHz,0.3V | 180.0 | ±20 | 419.0 | 1.00 | | CDRH105R-221M | 1KHz,0.3V | 220.0 | ±20 | 500.0 | 0.94 | | CDRH105R-271M | 1KHz,0.3V | 270.0 | ±20 | 672.0 | 0.80 | | CDRH105R-331M | 1KHz,0.3V | 330.0 | ±20 | 812.0 | 0.73 |
特長：
FEATURES:
數量/卷：1,000PCS。

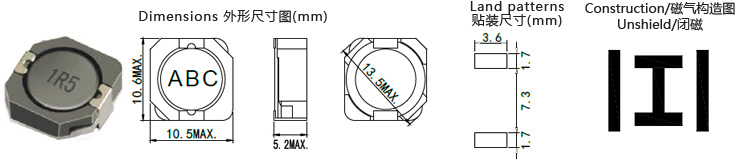

Quantity/reel: 1,000PCS. 耐大電流，低直流電阻，方形10.5mm×10.6mm，高度4.0mm MAX。
High rated current & Low DCR, quadrate 10.5mm×10.6mm. Height 4.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于數碼相機、掃描儀、升降壓轉換、磁帶錄像機電源、液晶顯示組件、便攜式終端設備、筆記本電腦等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
