CD53
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | CD53-1R0M | 100KHz,0.3V | 1.0 | ±20 | 0.038 | 4.500 | | CD53-2R2M | 100KHz,0.3V | 2.2 | ±20 | 0.045 | 3.500 | | CD53-3R3M | 100KHz,0.3V | 3.3 | ±20 | 0.055 | 2.800 | | CD53-3R9M | 100KHz,0.3V | 3.9 | ±20 | 0.064 | 2.600 | | CD53-4R7M | 100KHz,0.3V | 4.7 | ±20 | 0.072 | 2.500 | | CD53-5R6M | 100KHz,0.3V | 5.6 | ±20 | 0.084 | 2.400 | | CD53-6R8M | 100KHz,0.3V | 6.8 | ±20 | 0.090 | 2.200 | | CD53-8R2M | 100KHz,0.3V | 8.2 | ±20 | 0.100 | 2.000 | | CD53-100M | 1KHz,0.3V | 10.0 | ±20 | 0.120 | 1.800 | | CD53-120M | 1KHz,0.3V | 12.0 | ±20 | 0.130 | 1.750 | | CD53-150M | 1KHz,0.3V | 15.0 | ±20 | 0.150 | 1.700 | | CD53-180M | 1KHz,0.3V | 18.0 | ±20 | 0.180 | 1.600 | | CD53-220M | 1KHz,0.3V | 22.0 | ±20 | 0.220 | 1.500 | | CD53-270M | 1KHz,0.3V | 27.0 | ±20 | 0.240 | 1.400 | | CD53-330M | 1KHz,0.3V | 33.0 | ±20 | 0.300 | 1.100 | | CD53-390M | 1KHz,0.3V | 39.0 | ±20 | 0.400 | 1.000 | | CD53-470M | 1KHz,0.3V | 47.0 | ±20 | 0.430 | 0.900 | | CD53-560M | 1KHz,0.3V | 56.0 | ±20 | 0.500 | 0.850 | | CD53-680M | 1KHz,0.3V | 68.0 | ±20 | 0.600 | 0.800 | | CD53-820M | 1KHz,0.3V | 82.0 | ±20 | 0.800 | 0.650 | | CD53-101M | 1KHz,0.3V | 100.0 | ±20 | 0.900 | 0.600 | | CD53-121M | 1KHz,0.3V | 120.0 | ±20 | 1.000 | 0.580 |
特長：
FEATURES:
數量/卷：2,000PCS。

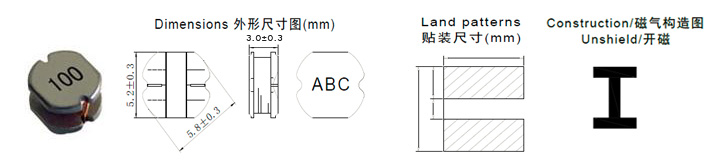

Quantity/reel: 2,000PCS. 產品小型化，標準外圓5.8mm（6.1mm Max）高度3.0mm TYP。
Small product, rotundity 5.8mm type (6.1mm Maximum) Height 3.0mm TYP. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
