NR4030
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(Ω) | Rated current
額定電流(A) | | NR4030-R91N | 100KHz,0.25V | 0.91 | ±30 | 0.016 | 6.25 | | NR4030-1R2N | 100KHz,0.25V | 1.20 | ±30 | 0.019 | 5.80 | | NR4030-1R5N | 100KHz,0.25V | 1.50 | ±30 | 0.025 | 4.84 | | NR4030-1R8N | 100KHz,0.25V | 1.80 | ±30 | 0.035 | 4.80 | | NR4030-2R2N | 100KHz,0.25V | 2.20 | ±30 | 0.044 | 4.10 | | NR4030-3R3M | 100KHz,0.25V | 3.30 | ±20 | 0.050 | 3.30 | | NR4030-4R3M | 100KHz,0.25V | 4.30 | ±20 | 0.069 | 2.95 | | NR4030-4R7M | 100KHz,0.25V | 4.70 | ±20 | 0.075 | 2.90 | | NR4030-5R6M | 100KHz,0.25V | 5.60 | ±20 | 0.081 | 2.60 | | NR4030-6R8M | 100KHz,0.25V | 6.80 | ±20 | 0.113 | 2.75 | | NR4030-7R5M | 100KHz,0.25V | 7.50 | ±20 | 0.106 | 2.20 | | NR4030-8R2M | 100KHz,0.25V | 8.20 | ±20 | 0.113 | 2.10 | | NR4030-100M | 100KHz,0.25V | 10.0 | ±20 | 0.125 | 1.95 | | NR4030-120M | 100KHz,0.25V | 12.0 | ±20 | 0.169 | 1.70 | | NR4030-150M | 100KHz,0.25V | 15.0 | ±20 | 0.238 | 1.65 | | NR4030-180M | 100KHz,0.25V | 18.0 | ±20 | 0.250 | 1.40 | | NR4030-220M | 100KHz,0.25V | 22.0 | ±20 | 0.281 | 1.30 | | NR4030-330M | 100KHz,0.25V | 33.0 | ±20 | 0.413 | 1.10 | | NR4030-360M | 100KHz,0.25V | 36.0 | ±20 | 0.419 | 1.05 | | NR4030-390M | 100KHz,0.25V | 39.0 | ±20 | 0.544 | 1.03 | | NR4030-470M | 100KHz,0.25V | 47.0 | ±20 | 0.556 | 0.95 |
特長：
FEATURES:
數量/卷：2,000PCS。
Quantity/reel: 2,000PCS. 產品小型化，方形4.0mm×4.0mm，高度3.0mm MAX。

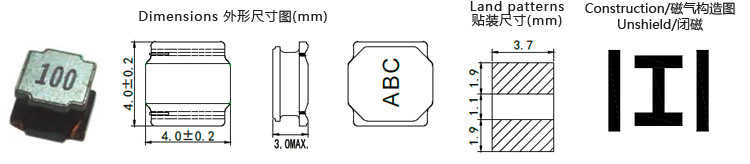

Small product, quadrate 4.0mm×4.0mm, Height 3.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于升降壓轉換器、液晶顯示、筆記本電腦、個人掌上記事本、MP3/MP4播放器、數碼相機、便攜式光碟機等。
Widely use in DC-DC converter/LCD TV/Notebook/PDA/MP3-MP4 play/Digital camera/Portable CDR-W etc.
|
