CDRH8D43
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(mΩ) | Rated current
額定電流(A) | | CDRH8D43-2R0M | 100KHz,0.3V | 2.0 | ±20 | 14.0 | 5.5 | | CDRH8D43-3R9M | 100KHz,0.3V | 3.9 | ±20 | 19.0 | 4.5 | | CDRH8D43-4R7M | 100KHz,0.3V | 4.7 | ±20 | 22.0 | 4.1 | | CDRH8D43-6R8M | 100KHz,0.3V | 6.8 | ±20 | 25.0 | 3.9 | | CDRH8D43-100M | 100KHz,0.3V | 10.0 | ±20 | 36.0 | 3.2 | | CDRH8D43-150M | 100KHz,0.3V | 15.0 | ±20 | 53.0 | 2.3 | | CDRH8D43-220M | 100KHz,0.3V | 22.0 | ±20 | 75.0 | 1.8 | | CDRH8D43-330M | 100KHz,0.3V | 33.0 | ±20 | 125.0 | 1.4 | | CDRH8D43-470M | 100KHz,0.3V | 47.0 | ±20 | 150.0 | 1.3 | | CDRH8D43-680M | 100KHz,0.3V | 68.0 | ±20 | 240.0 | 1.0 | | CDRH8D43-101M | 100KHz,0.3V | 100.0 | ±20 | 360.0 | 0.8 |
特長：
FEATURES:
數量/卷：800PCS。

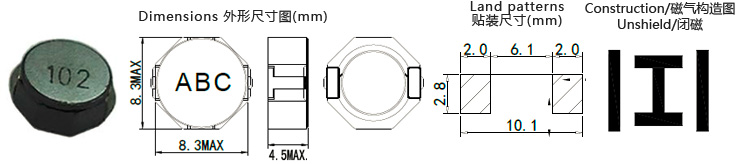

Quantity/reel: 800PCS. 耐大電流，低直流電阻，八角形8.3mm MAX，高度4.5mm MAX。
High rated current & Low DCR, octagonal 8.3mm MAX. Height 4.0mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于電源設備、數碼相機、掃描儀、升降壓轉換、CD-ROM、DVD播放器、筆記本電腦、主板和顯卡等。
Widely use in Batter powered equipment/Digital camera & scanner/DC-DC converter/CD-ROM & DVD/Laptop & Notebook / UGA displaycard etc.
|
