CDRH3D16A
Model No.
品名 | Test Condition
測試條件 | Inductance
電感(μH) | Tolerance
公差(%) | DC resistance
直流電阻MAX(mΩ) | Rated current
額定電流(A) | | CDRH3D16A-1R5M | 100KHz,0.3V | 1.5 | ±20 | 52 | 1.55 | | CDRH3D16A-2R2M | 100KHz,0.3V | 2.2 | ±20 | 72 | 1.20 | | CDRH3D16A-3R3M | 100KHz,0.3V | 3.3 | ±20 | 85 | 1.10 | | CDRH3D16A-4R7M | 100KHz,0.3V | 4.7 | ±20 | 105 | 0.90 | | CDRH3D16A-6R8M | 100KHz,0.3V | 6.8 | ±20 | 170 | 0.73 | | CDRH3D16A-100M | 100KHz,0.3V | 10.0 | ±20 | 210 | 0.55 | | CDRH3D16A-150M | 100KHz,0.3V | 15.0 | ±20 | 295 | 0.45 | | CDRH3D16A-220M | 100KHz,0.3V | 22.0 | ±20 | 430 | 0.40 | | CDRH3D16A-270M | 100KHz,0.3V | 33.0 | ±20 | 660 | 0.32 | | CDRH3D16A-330M | 100KHz,0.3V | 33.0 | ±20 | 660 | 0.32 |
特長：
FEATURES:
數量/卷：2,500PCS。

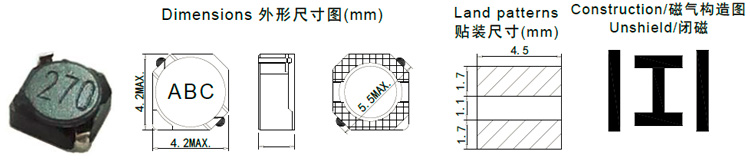

Quantity/reel: 2,500PCS. 產品小型化，方形4.2mm MAX，高度1.8mm MAX。
Small product, quadrate 4.2mm MAX. Height 1.8mm MAX. 載帶包裝，適用于SMT。
Carrier tape packing, use for SMT. 適用于回流焊SMT工藝。
Suitable for reflow soldering. 廣泛應用于數碼相機、掃描儀、升降壓轉換器、磁帶錄像機電源、液晶顯示組件、便攜終端設備、筆記本電腦等。
Widely use in Digital camera & scanner/DC-DC converter/Power supply for VTR/LCD monitor/Portable terminal equipment/Notebook etc.
|
